Steri-oss Implant respects the values of
hospitals, patients, and dental professionals.

HOME

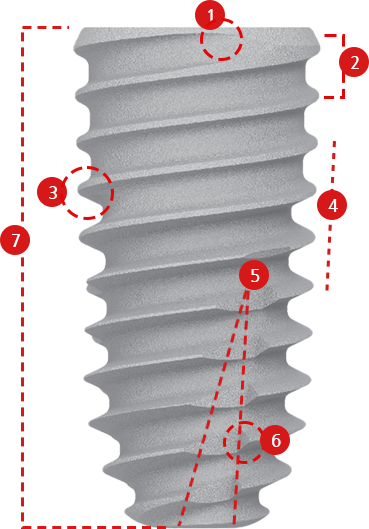

1Open Thread
  • Prevention of Bone Necrosis
2Internal Platform
  • Superior connection stability
  • Effect of preventing bone resorption
3Corkscrew Thread
  • Better implant placement feeling
  • Increased initial fixation strength
  • Self-tapping effect
4Tapered Body
  • Bony compaction effect
  • Advantageous for securing initial fixation strength
  • Minimizes the possibility of damage to adjacent tooth roots
  • Similar shape to natural tooth roots
5Helical Cutting Edge
  • Excellent insertion capability
  • Enhanced self-tapping functionality
  • Bone chips generated during implantation
6Apical Cutting Edge
  • Excellent penetrating performance
  • Excellent stability at the lower end
7Macro Thread (Double Thread)
  • Two thread insertion minimizing damage to the surrounding bone
  • Reduction in implantation time

Self-Taping Effect

The Self-Tapping function is highly excellent!!
  • The fixture's lower end is designed in a tapered shape, providing excellent insertion capability.
  • The fixture's lower end is designed with a triple cutting edge, providing excellent insertion capability.
  • Designed with a triple helical cutting edge, providing excellent self-tapping functionality.
  • The chip pocket function for bone chips generated during implantation.

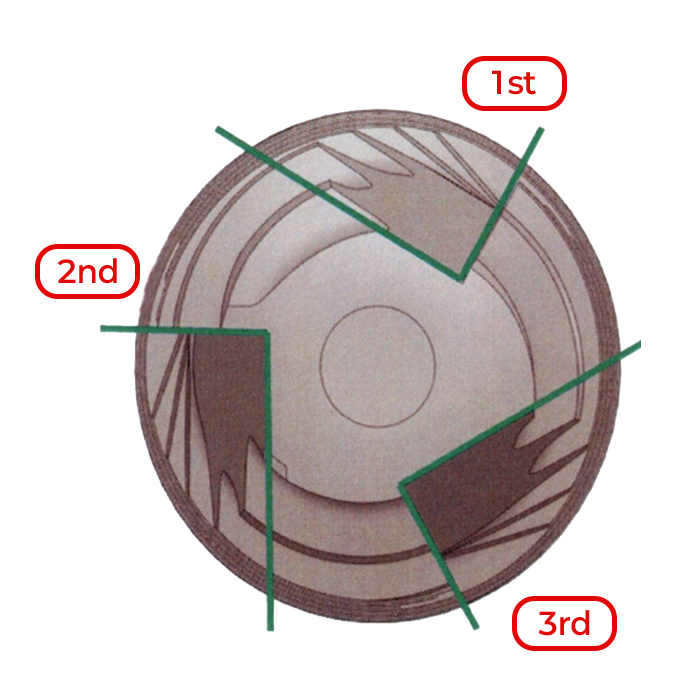

Triple Helical Cutting Edge
  • The excellent self-tapping function during initial entry reduces implantation time.

BL Extra Short System

Short Implant – Key Advantages
  • Allows Placement in the Posterior Mandible Without Vertical Bone Augmentation
  • Enables implant placement in areas with limited bone height, avoiding additional surgery.
  • Minimally Invasive Approach Reduces the need for extensive bone grafting or sinus lift procedures.
  • Preserves Vital Anatomical Structures Minimizes the risk of damaging nerves and sinus membranes.
  • Faster Healing and Recovery Less surgical trauma leads to shorter recovery time.

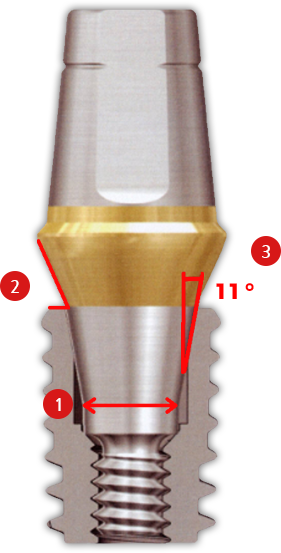

Fixture connection and Platform

1Regular Connection
  • All fixture models are standardized with a single regular-type prosthetic connection.
2Platform Switching
  • Platform switching refers to the connection of a narrower abutment to a wider implant platform to enhance crestal bone preservation.
3Morse Taper
  • Taper angle of the abutment connection area: 11°
S.L.A Surface
for Superior Initial Fixation
The surface of the fixture has excellent morphology and roughness, with a 50% increase in surface area compared to RBM The SLA surface and the entire taper shape of the Steri-oss fixture ensure sufficient initial fixation

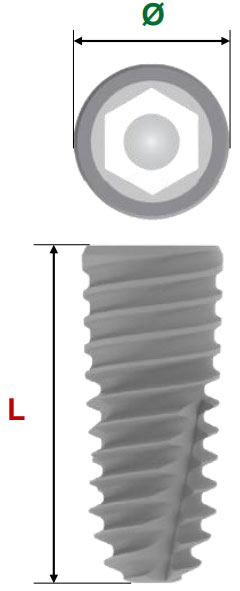

STERI-OSS IMPLANT BONE LEVEL FIXTURE

  • Surface Treatment : S.L.A
  • Internal Hex : 2.5mm
  • Morse Taper Connection : 11°
  • Female Screw : M2.0

Reference Code

L Ø 6mm 7mm 8mm 9mm 10mm 11mm 12mm 13mm
F3.5(Ø3.8) - SD3507 SD3508 SD3509 SD3510 SD3511 SD3512 SD3513
F4.0(Ø4.2) - SD4007 SD4008 SD4009 SD4010 SD4011 SD4012 SD4013
F4.5(Ø4.6) - SD4507 SD4508 SD4509 SD4510 SD4511 SD4512 SD4513
F5.0(Ø5.1) SD5006 SD5007 SD5008 SD5009 SD5010 SD5011 SD5012 SD5013
F6.0(Ø6.0) SD6006 SD6007 SD6008 SD6009 SD6010 SD6011 SD6012 SD6013

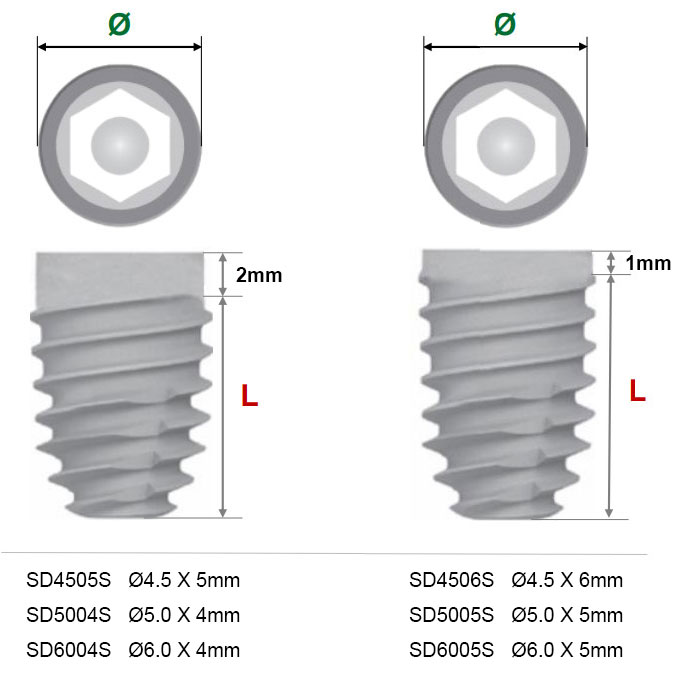

STERI-OSS IMPLANT BONE LEVEL FIXTURE•EXTRA SHORT

  • Surface Treatment : S.L.A
  • Internal Hex : 2.5mm
  • Morse Taper Connection : 11°
  • Female Screw : M2.0

Reference Code

L Ø 4mm 5mm 6mm
F4.5(Ø4.6) - SD4505S SD4506S
F5.0(Ø5.1) SD5004S SD5005S -
F6.0(Ø6.0) SD6004S SD6005S -
